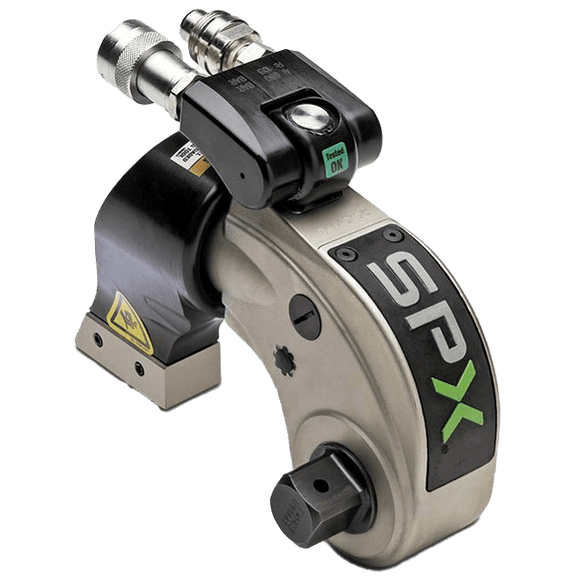

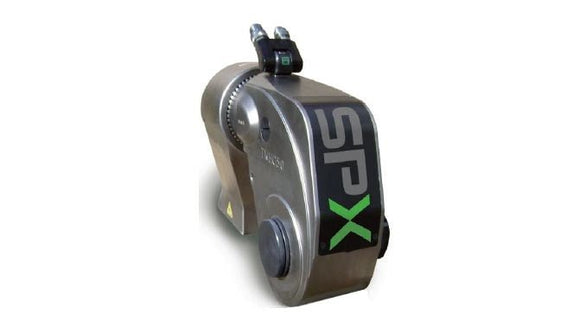

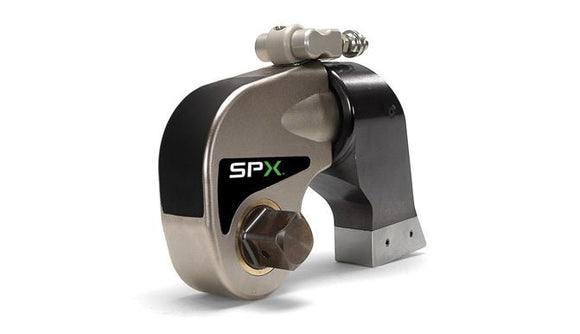

TWHC3 TORQUE WRENCH, SQUARE DRV, 1" - AJP Industrial Supplies - spxsqudritorwre - 3
TWHC3 TORQUE WRENCH, SQUARE DRV, 1" - AJP Industrial Supplies - spxsqudritorwre - 3
TWHC3 TORQUE WRENCH, SQUARE DRV, 1" - AJP Industrial Supplies - spxsqudritorwre - 3

SPX Square Drive Torque Wrenches TWHC6 1-1/2"

Wind Energy Torque Wrench

  • Designed for high cycle life: 2 to 3x more than existing technology
  • Increased reliability: simple drive assembly means less downtime
  • Corrosion resistant material used for use in harsh environments
  • Compact nose radius allows the tool to fit in tighter, hard-to-reach spaces
  • Low weight, high strength design
  • Fast operation, long stroke and optimum flow
  • Multi-direction high flow swivel manifold
  • Fully enclosed drive mechanism for operator safety
  • No-pinch square drive direction switching



Model Torque Output   Square Drive   Weight
LB. FT (Nm) (in.) (mm.) (lbs.) (kg.)
TWHC1 1300 1762  3/4 19.05 6.2 2.8
TWHC3 3070 4160  1 25.4 11.7 5.3
TWHC6 6020 8157  1 1/2 38.1 19.4 8.8
