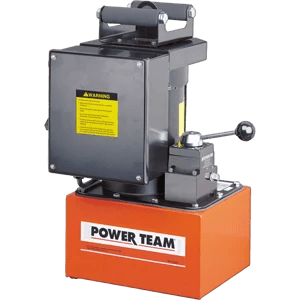

PE213 PUMP,E 22 CU IN/MIN, 115/230V, 60HZ

  • Totally enclosed, fan cooled induction motor: 1 HP, 1,725 RPM, 60 HZ, single-phase. Thermal overload protection.
  • Remote control, with 10 foot cord is standard on pumps with solenoid valves. Manual valve pumps have “Stop”, “Start” and “Run/off/pulse” switches.
  • Pump controls are moisture and dust resistant.
  • Motor drip cover with carrying handles and lifting lug.
  • Low noise level of 70 dBA@10,000 psi.
  • In the event of electrical interruption, pump shuts off and will not start up until operator presses the pump start button.
  • Units with remote have a 24VAC control circuit that provides additional user/operator safety.
  • CSA rated for intermittent duty
